MK-Guitar.com presents: Loaded Schecter F400-style pickguard
Posted in: Guitars,Mark Knopfler gear,Misc,Vintage guitars by Ingo on December 14, 2010
I am proud to announce a brand new product which will be available exclusively on this site in the very near future.
For a long time those vintage Schecter pickguards, loaded with the sought-after F500T tapped Schecter pick-ups, have been the ultimate tool to convert your guitar into something similar to the legendary Schecter Dream Machines, or as a start point to build a high-end custom Strat. With those three mini switches and the tapped pick-ups you can select from not less than 27 pick-up combinations, ranging from the classic Strat sounds to fat p90-like blues sounds.
The loaded Schecter F400 pickguards came with the Dream Machines, or were available separately to upgrade your Strat in the 70ies and early 80ies. Anyway, they are extremely rare and for this reason almost impossible to get. No wonder that used items have sold for up to 1,500 USD on ebay since then.
Here they are again – exclusively on MK-Guitar.com
I had the idea to build one of these for myself but I soon found out that the price will be astronomical for two reasons: most of those fancy parts like for example the American flat-lever mini switches or the conductive plastic potis are hard to get, and if so only in certain quantities. Also, some jobs like constructing the pickguard in AutoCAD to get a vector file that controls certain high-tech machinery imply an enormous amount of work and time, and would not pay for just one single board. So the idea of a small production run was born.
Highest quality only
The core idea of Schecter was to offer upgrade parts for your guitar, and as an upgrade these need to be of superior quality. Mind that a complete Schecter Dream Machine was never considered as as Strat copy because even back then it cost a multiple of the price for a US Fender Strat. Everything was made with finest parts. The potis for example were not simply some potis, they were US made conductive plastic potis for extended life, fully dust capsuled. When you turn them, they do not feel like a crappy Chinese poti found in many guitars these days. Instead, they have that creamy tight feel you associate with the volume knob of an expensive HIFI amplifier. We have them again!
Or those mini switches: they are still available today but normally they have a round lever instead of the flat one. I indeed found Asian switches with flat levers that look alright but if you compare them with the real stuff, they simply feel different, they rattle, and – call me a snob – when you switch them, the “click” sound is different than with the US switches. Finally I managed to get hold of US made switches, they cost me three times as much as the Asia stuff but it is worth the price. I even got those fancy round dress nuts for the switches, essential for the authentic look.
Flat-lever switches with dress nuts
Hand-wound finest custom pick-ups by Harry Häussel
Another problem were the pick-ups. The original Schecter F500T was a tapped pick-up for both the classic Strat sound and a fat, warmer lead sound. The ones you see on ebay are extremely expensive, or often defective. It seems many of them have problems after some decades, something which is also true for 50ies Fender pick-ups. A few companies, e.g. Seymour Duncan, still make pick-ups that are somewhat similar to the F500T. However, similar was not enough for me, so I teamed up with one of Europe’s hottest pick-up winding gurus – Harry Häussel – to come up with something superior. Those of you who know Harry’s outstanding vintage Fender replicas will not be surprised to hear that our pick-ups are made with real love and attention to even smallest details. They have the same kind of magnets, the same winding wire, the same winding method. I even got American gauge cables of the same colours – black, yellow, and purple - simply because the European cable gauges looked too skinny, or were too fat.

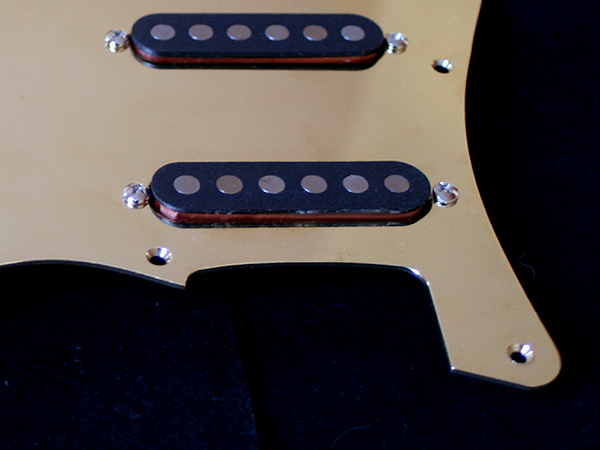

Tapped pick-ups with those big Alnico magnets
What you get
Our loaded pickguards should fit on all Strat-sized guitars (8 holes like vintage Schecter).
* Made of solid brass (alternatively white aluminium), professionally high-tech cut to our specifications in Germany, professionally polished for that magic, shiny look.
* Hand-wound pick-ups for that F500T sound. Magnets, wires, winding etc., like vintage Schecter. These are definitely not the cheapest but the best!
* Two US high-quality square potis, conductive plastic, extended life, just like vintage Schecter (in fact by one of the two suppliers that Schecter had, the other one is out of business)
* Three US-made flat-lever mini toggle switches, with dress nuts, just like vintage Schecter
* Tone capacitor and treble bleeding capacitor with resistor, like vintage Schecter.
Price: to be announced soon (Update: 419,- €)
Availabilty: coming soon (Update: first pickguards shipping)
See product in our shop:
And here the original, a real vintage Schecter
... and another vintage Schecter. Compare to the previous picture and note that Schecter used switches and potis from different manuafacturers.
The backside of the Pensa MK-80 pickguard looks quite different
Wow. Really cool man. I want one.
Comment by Felix — 15. December 2010 @ 09:41
This is awesome, I’ve wanted one of these for some project guitars for quite sometime. I’ll be sure to get one. Looking forward to it!
Comment by Erik — 16. December 2010 @ 22:27
Sounds very cool. And very expensive. I’m anxious to find out the price but I have to say from what you wrote I’m really tempted…
Comment by Jeff — 16. December 2010 @ 23:19
I’m very interested in one of them. Please, tell me when you finish one of them to buy it.
Comment by Jesús — 19. December 2010 @ 11:46
Wow looking forward to these big time!!!! Want one depemding on price of course!!! Great idea Ingo!
Comment by Alex Mircica — 19. December 2010 @ 18:37
Wow Ingo, this sounds awesome! Ive been searching for a Dream Machine for a long time and eventually gave up , but know it gets a lot more realistic! I think you won’t make the collectors like Rune S etc happy though
Comment by Erik — 21. December 2010 @ 16:31
By the way, one suggestion, isn’t it an idea to offer more versions, like Schecter did, for example brass and also plastic pickguard? I can imagine wanting to put one on a CAR strat for example, then a white plastic pickguard would look better than a brass one…
Comment by Erik — 21. December 2010 @ 16:57
There will be white ones, too, but not white plastic but white aluminium, just like the CAR Schecter
Comment by Ingo — 21. December 2010 @ 17:40
419! I’ll have one, how long will those pickguards stay in production and what are the shipping costs? And how can I pay?
Comment by Felix — 22. December 2010 @ 17:03
It is available in this site’s online shop, the shop will calculate the shipping costs for you according to the country you live in. At the moment only a first few are available, more coming soon, the white pickguards will be at the same price, availably probably by mid January.
Comment by Ingo — 22. December 2010 @ 18:03
I will be putting myself down for at least one in the new year when we get Christmas expenses out of the way I hope the production runs lasts that long, good work Ingo and team!!
Comment by Alex Mircica — 22. December 2010 @ 22:36
Very great news about the white pickguard for the CAR schecter. Can we expect to load different pick ups (like Lindy Fralin or Seymour Duncan) instead of F500T schecter style pick ups ?
Comment by Antone — 24. December 2010 @ 09:14
Will the parts be available seperately, too?
Comment by TheWizzard29 — 25. December 2010 @ 22:08
[...] MK-Guitar.com presents: Loaded Schecter F400-style pickguard (13) [...]
Pingback by Schecter-style loaded pickguard now shipping | Mark Knopfler Guitar / More Knowledge about the guitar — 1. January 2011 @ 13:55
[...] Schecter-F400 loaded pickguards normally came with Schecter’s F500T pick-ups. The ‘T’ stands for tapped. So, what [...]
Pingback by Inside the Schecter F500T pick-up – What is a tapped pick-up? | Mark Knopfler Guitar / More Knowledge about the guitar — 10. January 2011 @ 14:14
[...] the brass pickguards, the white ones are also available now. Just like on Mark Knopfler’s red Schecter Strat, they [...]
Pingback by White Aluminium Schecter-style pickguards now available | Mark Knopfler Guitar / More Knowledge about the guitar — 25. January 2011 @ 22:03
i have a problem but it really doesnt have to do with this, but i have an anodized gold fender strat pickguard on my MIM sunburst strat and its dull not shiny. does anyone have any ideas on how to shine it like these pickguards or any ideas on where i would take it to get it shined professionaly?
Comment by Ryan — 13. February 2011 @ 21:30
[...] pick-upRed – redder – the reddest: fiesta, dakota, candy apple, hot rod, and more Fender coloursMK-Guitar.com presents: Loaded Schecter F400-style pickguardMark Knopfler’s amp settings on Fender Hot Rod Deluxe (Boom like that promo, Germany [...]
Pingback by Limited Alchemy Edition of the white Schecter pickguard | Mark Knopfler Guitar / More Knowledge about the guitar — 15. March 2011 @ 12:58
Ingo, marvelous work my friend.
I am sorely tempted by your promise of the highest quality etc.
However I have to pay off a car and buy a writing bureau before I can buy. Do you think you will still have these in about a years time?
Best Regards.
Comment by Fletch — 19. March 2011 @ 09:11
Noone can predict the future, but as long as enough people want them, I can continue producing them of course.
Comment by Ingo — 26. March 2011 @ 09:06
[...] is a youtube video that demonstrates some of the 36 possible pick-up combinations of our loaded Schecter-style pickguards. Each pick-up can be switched to the full or tapped coil which means a fat sound or a vintage-like [...]
Pingback by Demoing pickup combinations of the Schecter style pickguards | Mark Knopfler Guitar / More Knowledge about the guitar — 22. June 2011 @ 09:13
[...] very first Squiers were really great, almost all of them sound cool. I put one of my loaded Schecter-style pickguards on it that allow a total of 27 sound combinations from the three tapped [...]
Pingback by Comparing different guitars | Mark Knopfler Guitar / More Knowledge about the guitar — 18. July 2011 @ 06:43
hey, is there a possibility that the pickguard can be sold alone without the pickups in them? and if so around what time in the future will they be available?
Comment by Sean — 25. October 2011 @ 00:55
